211
211 / VT-4-C SE STEREO POWER AMPLIFIER
For request of our customer base this model has designed to drive less sensitive loudspeakers also.

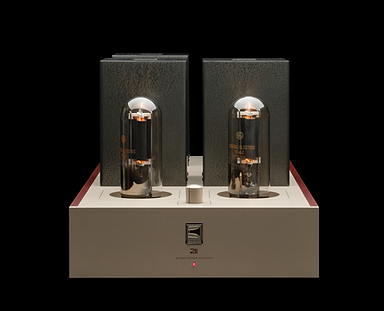

The Clarinet's 211 Stereo Power Amplifier is designed with a Pure Class-A Single-Ended operation of the 211 / VT-4-C tube. The input section is built with 12AY7/6072 and the driver's stage is with E182CC.
The devices is fully hardwired - signal and PSU section - with a special silver-wire and has silver capacitors and in-house constructed silver lead out wired resistors. The input and output terminals are of the highest-grade pure silver. The case of the device is made of aluminium alloy.
Clarinet's 211 Stereo Power Amplifier doesn't contain overall negative feedback.
TECHNICAL PARAMETERS
Power-output: 35 W + 35 W
Bandwidth:
7 Hz - 67 kHz (+0/-3 dB @ 1 W)
12 Hz - 65 kHz (+0/-3 dB @ 30 W)
Gain: 14 dB
Noise: < 1 mV
Input impedance: 100 kΩ
Inputs: 1x RCA (unbalanced)
Output impedance (optional):
4 / 8 / 16 Ohm
Vacuum tubes:
2x 12AY7 / 6072
2x E182CC
2x 211 / VT-4-C
Power consumption: 210 W
Dimensions:
320 W x 290 H x 590 D (mm)
Weight: 43 kg
