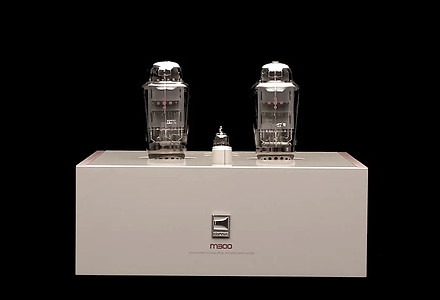

M300
300-B PSE MONAURAL POWER AMPLIFIER
The Clarinet's flagship M300 monaural power amplifier is designed with a Pure Class-A Parallel Single-Ended operation of the 300-B power tube. The input section is built with 12AY7/6072, and the driver's stage is with E182CC.
The device is fully hardwired - signal and PSU section - with a special silver-wire and has silver capacitors, in-house made silver lead out wired resistors, in-house made transformers. The input and output connectors are of the highest-grade pure silver. The case of the device is made of aluminium alloy.
Clarinet's M300 monaural power amplifier doesn't contain overall negative feedback.
TECHNICAL PARAMETERS
Power output: 13 W
Power-bandwidth:
9 Hz - 75 kHz @ 13 W, +0/-3 dB
18 Hz - 50 kHz @ 13 W, +0/-1 dB
Noise: Less than 1 mV
Gain: 15 dB
Input impedance: 100 kΩ
Inputs: 1x RCA (unbalanced)
Output impedance: 8 Ohm
Vacuum tubes:
1 x 12AY7 / 6072
1 x E182CC
2 x 300-B
Power consumption: 95 W
Dimensions:
320 W x 270 H x 470 D (mm)
Weight: 18 kg
